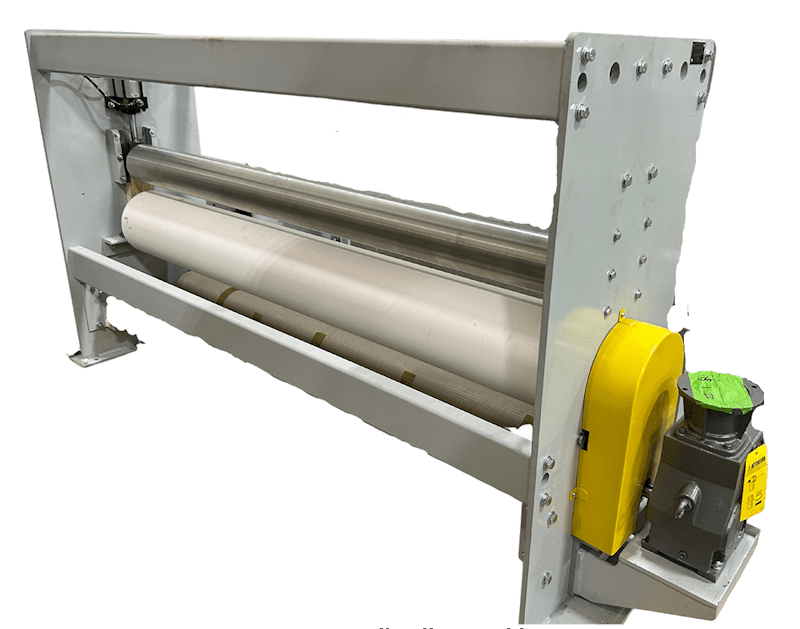

Pull Roll Assemblies
Precision‑Driven Web Transport & Tension Control for Continuous Processing
Menzel Pull Roll Assemblies are engineered to deliver controlled, reliable web transport across textile, nonwoven, film, and industrial processing lines. Designed as tension‑isolating, driven roller systems, they ensure smooth material movement, accurate speed control, and consistent alignment—supporting high‑quality finishing, dyeing, printing, coating, and inspection operations.
Built for 24‑hour industrial use, each assembly combines heavy‑duty construction with precise drive technology to maintain stable web handling under varying loads and process conditions.
Engineered for Stable, Controlled Web Movement
Menzel pull rolls provide the traction and tension separation required for modern web‑processing lines. Key performance advantages include:
- Accurate, driven web transport for consistent line speed
- Tension isolation between upstream and downstream zones
- High‑friction contact for reliable pulling of delicate or heavy materials
- Smooth, vibration‑free operation at high speeds
- Customizable roll coverings for grip, release, or specialty materials
These assemblies help maintain product quality by preventing wrinkles, slippage, and tension‑related defects.
Key Features
- Driven roller assemblies with precise speed control
- Heavy‑duty steel frame for continuous industrial operation
- Rubber, urethane, or specialty roll coverings
- Optional air‑loaded nip systems for enhanced traction
- Anti‑wrap devices for challenging materials
- Custom roll diameters, face widths, and drive packages
- Integration with Menzel guiding, spreading, and winding systems
Pull Roll Configurations
Nip Roll Assemblies
- Two rollers clamping the web for positive traction
- Ideal for wet or slippery materials
- Adjustable nip pressure for different substrates
S‑Wrapped Pull Rolls
- Web follows an S‑shaped path around two driven rolls
- High‑friction pulling for stable transport
- Excellent for tension‑sensitive materials
Omega‑Wrapped Pull Rolls
- One driven roll with two idler rolls
- Maximizes wrap angle for strong torque transmission
- Suitable for high‑speed or heavy‑load applications
Benefits
- Consistent web speed for uniform processing
- Improved tension control across machine sections
- Reduced defects such as wrinkles, slack edges, or misalignment
- Enhanced operator safety with stable, predictable web handling
- Customizable designs for specific materials and line layouts
Optional Enhancements
- Air‑loaded or hydraulic nip systems
- Anti‑wrap guards for lightweight or clingy materials
- High‑temperature or chemical‑resistant coverings
- Servo‑driven packages for precision synchronization
- Integrated load cells for tension monitoring
- Stainless‑steel construction for specialty environments
Built for Industrial Web‑Handling Performance
Menzel Pull Roll Assemblies deliver the precision, durability, and control required for modern textile, nonwoven, and industrial material‑processing lines. With customizable configurations and robust engineering, they ensure smooth, reliable web transport from start to finish.
Built to Last. Supported for Life.
Every Menzel system is engineered for durability—and backed by a service team dedicated to protecting your investment. From installation to long term maintenance, we’re here to ensure your equipment delivers the performance, reliability, and quality your operation depends on.
